SI.DIMENSIONS
Applies to:
- Velixo NX
- Sage Intacct
The SI.DIMENSIONS converts a sequence of pairs (DimensionName, DimensionValue) into the matrix format that is usable by certain Velixo functions for Sage Intacct.
Syntax
SI.DIMENSIONS(ConnectionName, DimensionName, DimensionValue, [DimensionName], [DimensionValue]... [DimensionName], [DimensionValue])
The SI. DIMENSIONS function uses the following parameters:
| Required/Optional | Description |
ConnectionName | Required | The name of the connection, as specified in the Connection Manager |
DimensionName | Required | The name of the Dimension being used. |
DimensionValue | Required | The value being applied to the DimensionName |
DimensionName | Optional | The next Dimension being used |
DimensionValue | Optional | The value being applied to the next DimensionName |
... | ... |
|
DimensionName | Optional | The last Dimension being used. |
DimensionValue | Optional | The value being applied to the last DimensionName |
Examples
Example 1 - single dimension
Here is an example of the SI.DIMENSIONS function being used to provide the Dimensions parameter to the SI.TURNOVER function:
=SI.TURNOVER("Sage",,"10010","2019-12-01","2019-12-31","*", SI.DIMENSIONS("Sage","Department","200")
In this case, the SI.DIMENSIONS function is creating the necessary matrix composed of the Department dimension and the value to be used (200)

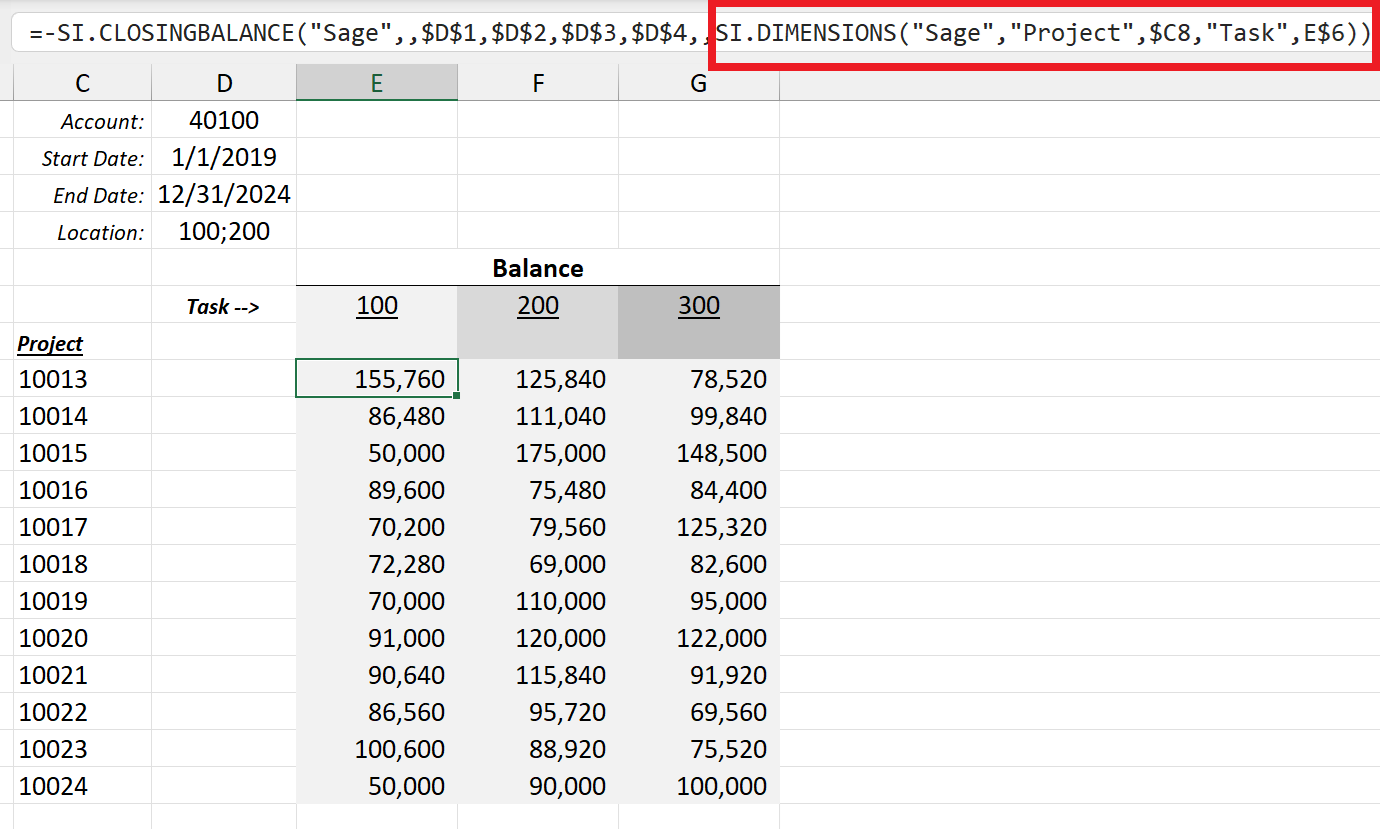

Example 2 - multiple different dimensions
Here is an example of the SI.DIMENSIONS function being used to provide the PROJECT and TASK dimensions to the SI.CLOSINGBALANCE function:

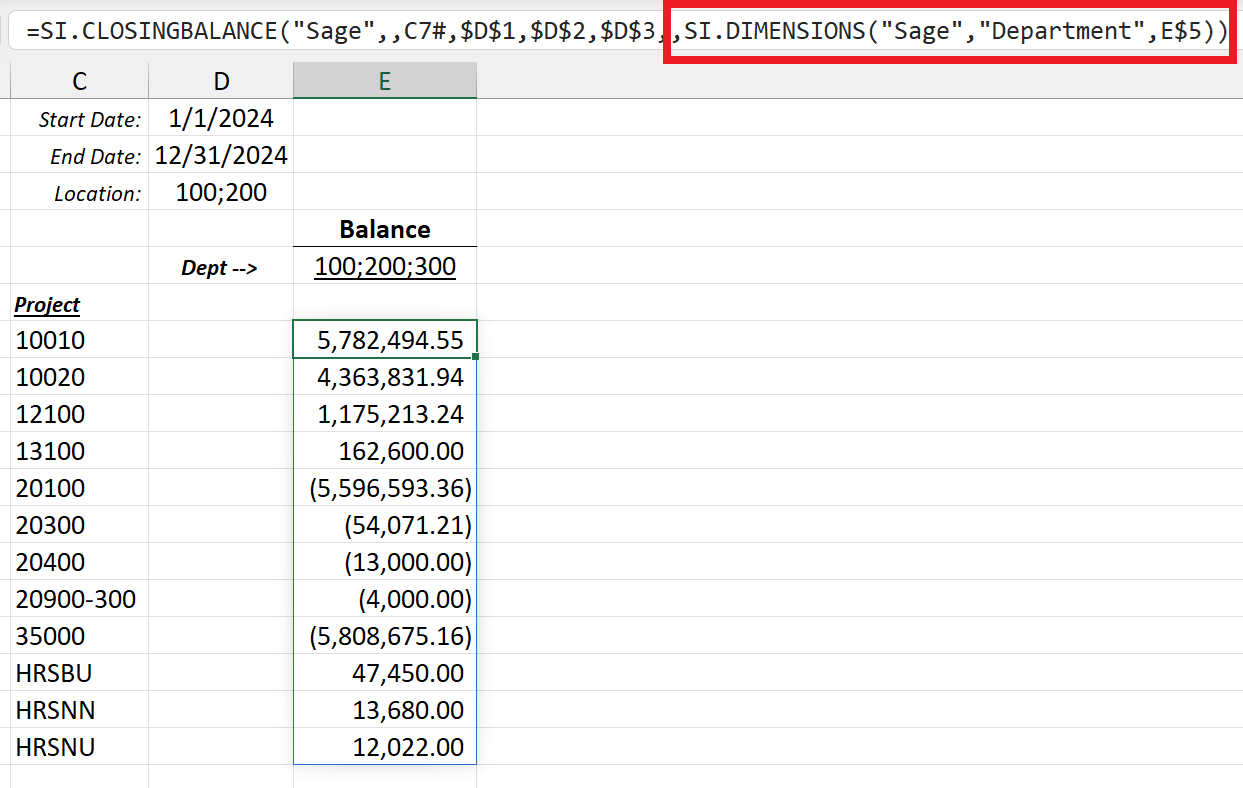

Example 3 - multiple values for a single dimension
Here is an example of the SI.DIMENSIONS function being used to provide multiple values for the Department dimension to the SI.CLOSINGBALANCE function:

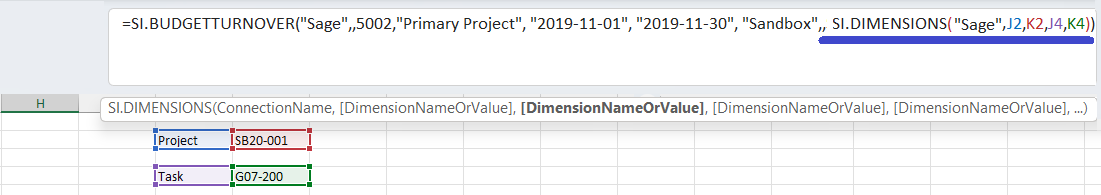

Example 4 - cell references for both dimensions and values
Here is an example of the SI.DIMENSIONS function being used to provide the Dimensions parameter to the SI.BUDGETTURNOVER function:
In this case, the SI.DIMENSIONS function is creating the necessary matrix composed of the Project and Task dimensions and the values to be applied to each.
Note: As described in Using Dimensions, it is possible to also reference a N:N matrix with a similar same Name and Value structure. Considering the above example, SI.DIMENSIONS(J2,K2,J4,K4) can be replaced by a simple reference to J2:K3 (after removing the bank row between the two filled rows)
